Config Entities

Similar to provided entities, SmartBeans can generate additional entities in Home Assistant to configure the bean. Config entities serve as input interfaces and are created in the config category of the bean device. SmartBeans supports various datatypes through different config entity types. For instance, the ConfigNumber interface enables users to input numerical values that can be accessed within your SmartBean implementation. In Home Assistant, this is represented as a number entity.

For example, in our sample bean for motion-controlled lighting, we need to make the duration configurable for automatically switching off the lights after motion is no longer detected. To implement this, we can create a ConfigDuration entity named timeout.

Similar to provided entities, you simply declare a field with the desired configuration type and annotate it with @Config. SmartBeans will then automatically register this entity in Home Assistant and inject an object into the field, allowing your application to retrieve the user-configured value at runtime.

public class KitchenMotionControl implements SmartBean {

  @Entity("light.kitchen_ceiling")
  private Light light;

  @Config(value = "60", unitOfMeasurement = "s", max = 600)
  private ConfigDuration timeout;

  @TimerDef
  private Timer lightOffTimer;

  @OnStateTrigger(entity = "binary_sensor.motion_kitchen", to = "off")
  public void onNoMotion() {
    lightOffTimer.start(timeout.toDuration());
  }

  @OnTimerElapsed("lightOffTimer")
  public void turnLightOff() {
    light.turnOff();
  }
}

The value property of the @Config annotation specifies the default (or initial) value for the configurable parameter and is the only required property of this annotation.

Various config entity types are available. Refer to the Config entities reference for comprehensive information about the different types and their implementation details.

Light Presets

One useful configuration entity that deserves special mention is the ability to configure light presets. If you need to specify the brightness and color of a light that is activated by the bean, you can utilize the ConfigRgbColor entity for this purpose.

public class KitchenMotionControl implements SmartBean {

  @Entity("light.kitchen_ceiling")
  private Light light;

  @Config(value = "#FFFFFF")
  private ConfigRgbColor lightColor;

  @OnStateTrigger(entity = "binary_sensor.motion_kitchen", to = "on")
  public void onMotion() {
    lightColor.applyTo(light);
  }
}

Light preset configuration entities are exposed as light entities in Home Assistant. When you invoke the applyTo() method on a ConfigRgbColor object, both the color properties and brightness settings from the configuration entity will be transferred to the target light entity supplied as the method parameter.

Entities in Home Assistant

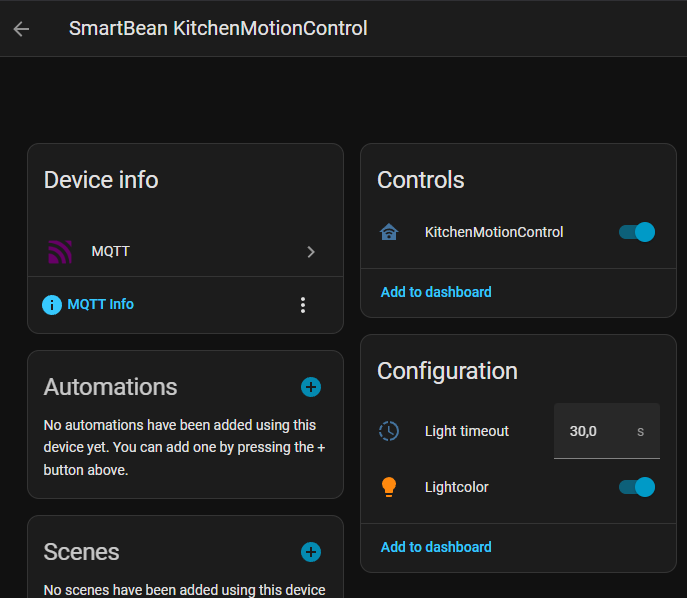

All config entities created by the bean are created as MQTT entities in Home Assistant and are automatically registered to the bean's device. The SmartBean device for this bean will look like this in Home Assistant:

Persistent Config Values

Every config entity is automatically instantiated during bean deployment, with its value in Home Assistant initialized to the default value specified in the @Config annotation. Consequently, these configured values are not retained between redeployments, such as when SmartBeans or Home Assistant restarts.

Fortunately, all config interfaces in SmartBeans extend the HasState interface, enabling state persistence. See the bean state chapter for comprehensive details. To ensure persistence of configuration values, you must apply the @State annotation to all fields that should be preserved across restarts.

public class KitchenMotionControl implements SmartBean {

  @Config(value = "60", unitOfMeasurement = "s", max = 600, friendlyName = "Light timeout")
  @State
  private ConfigDuration timeout;

  @Config(value = "#FFFFFF", friendlyName = "Lightcolor")
  @State
  private ConfigRgbColor lightColor;
}

Change Listener

All config entities support change listeners that are invoked whenever the config value is updated through Home Assistant.

You can either annotate a parameterless method in your bean with @OnConfigValueChanged, passing the ID of the config value, or register a listener programmatically by calling addValueChangedListener() on the config entity. The first approach keeps the code declarative, while the second one allows using lambdas or dedicated listener implementations.

public class ASampleBean implements SmartBean {

  @Config(value = "foo")
  private ConfigText textConfig;

  @Override
  public void init(SmartBeans sb) {
    textConfig.addValueChangedListener(
        evt -> System.out.println("Config value changed to: " + evt.getValue()));
  }

  @OnConfigValueChanged("textConfig")
  public void configValueChanged() {
    System.out.println("Config value changed to: " + textConfig.getValue());
  }
}
